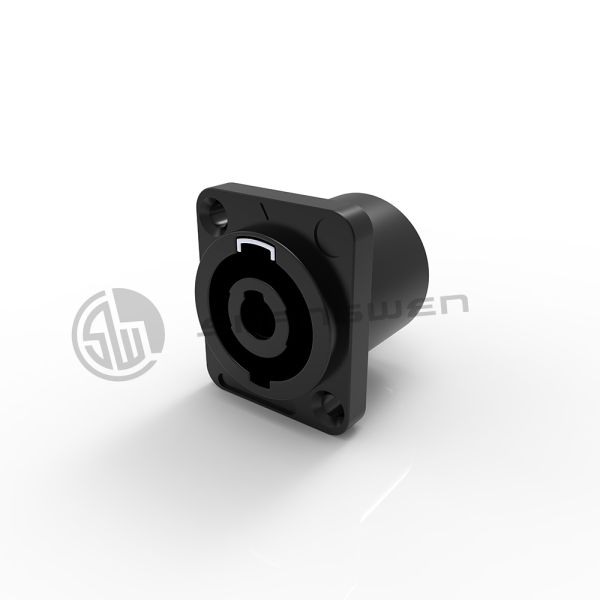

Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock

Product Categories
Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW4SMZ

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 10

Price : $3.00/pieces 2-99 pieces

Type : Loudspeaker

Application : Audio & Video

Gender : Male

Industrial electronics : accessories

Contact Now

D Shape Latch Lock Plastic 4pin Loudspeaker Chassis 4 Pins Male Speaker Connector

Products Description
4Pin Loudspeaker chassis -engineering plastics material
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
Model:SW4SMZ
☑Up to 30A rms current rating
☑Precise keyway for secure mating
☑Metal insert in locking area
☑Glass reinforced materials make it extremely robust and dependable ☑Accurate twist lock latching system ☑Airtight design - optimized for speaker applications
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
1.Product parameters
Connection Type
Speaker
Gender
Male
2.Electrical parameters
Contact resistance
≤3mΩ
Dielectric strength
4kVdc
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
30A
Rated voltage
250 V ac
3.Mechanical parameters
Service life
＞5000 mating cycles
Chassis shape
D
Layout
two thru holes
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Brass
Contact plating
Ag
Shell
Polyamide (PA 6 30 % GR)
Flame-retardant grade
UL 94 HB
Temperature range
-30℃to +80℃
5.Size reference (unit /mm)
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
6.Assembly reference
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
Application area
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock

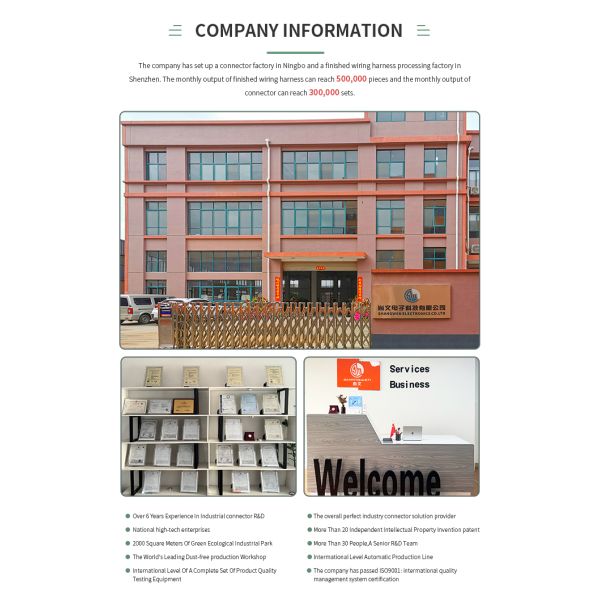

Company Information
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
Patent & Certification
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
Exhibition activities
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
Packaging reference
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
Payment and logistics
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
FAQ
Chassis 4 Pin Speaker Male Connector Plastic D Shape Latch Lock
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
